The E-Z Crusher Model B is perfect for the local recycling yard looking to crush scrap automobile bodies and ferrous metal. It can also be used for custom crushing operations.

Opening Size

20" x 7'6" x 7'7"

Overall Length


Wiry and Capable

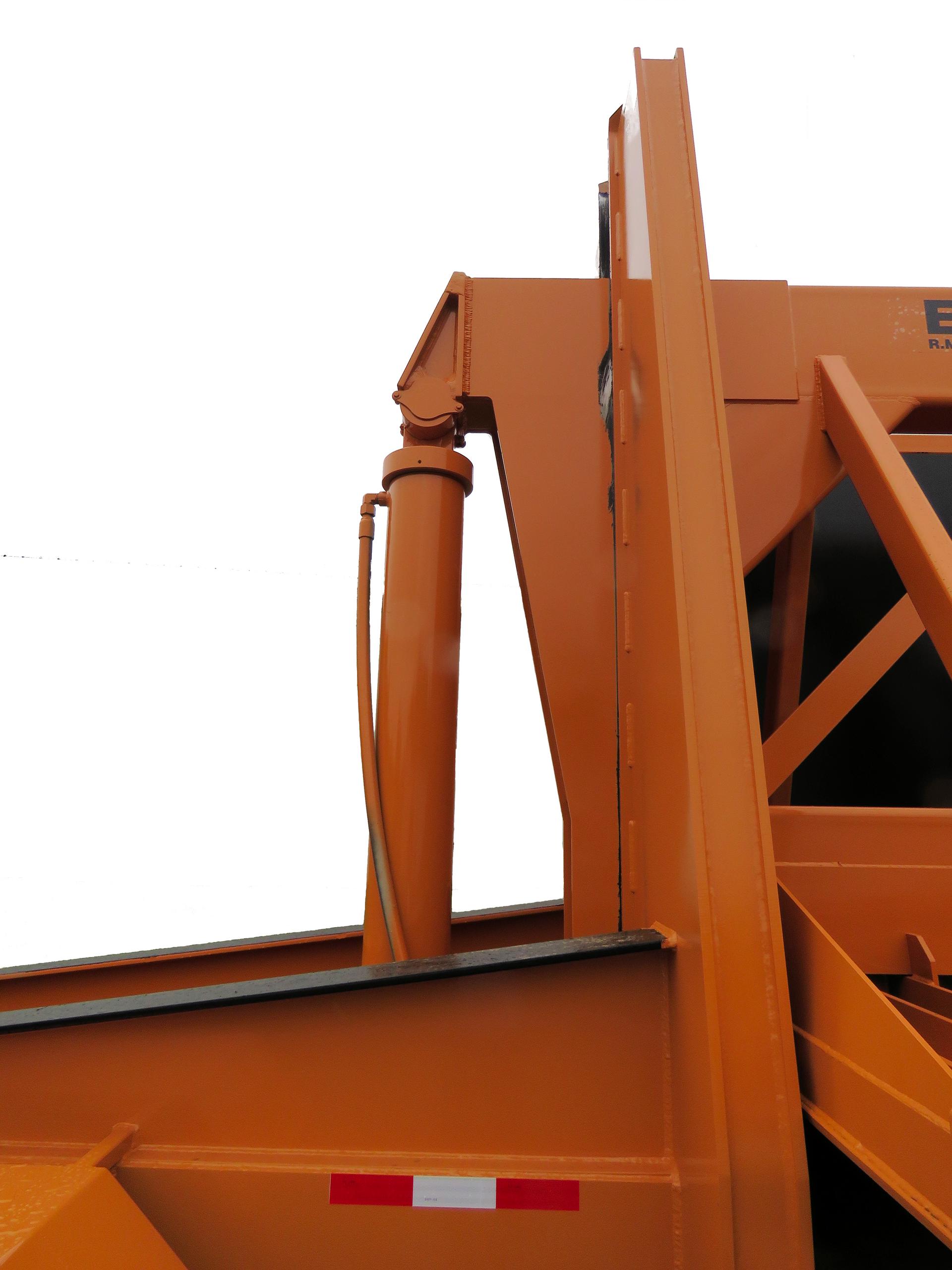

The Model B Crusher weighs just 49,000 lbs. but stacks up to its bigger brother’s strength, flexibility and speed. With 8-inch cylinders and a range of available drive motors, the Model B is the ideal solution for many recycling applications.

Efficient Crushing Cycle

The Model B Crusher can reduce scrap automobile bodies and ferrous metal into neat bundles in just 45 seconds. No matter how demanding your recycling operations may be, the Model B Crusher can keep up.

Stable on any Surface

Integrated outriggers provide additional support and stability, making it easy to position the crusher on any surface, in any corner of your recycling yard.

Fully Customizable Operation

Each cylinder can be operated independently of the other, giving you increased leverage and maneuverability during crushing cycles.

Additional Specifications


System Pressure 2500 psi
Port Reliefs Set At 2650 psi
Cylinders 8" bore
Travel 72"
Shaft 2.5" rod


Size 20" x 7'6" x 7'7"


Weight 49,000 lbs
Length 43'5"
Travel & Operating Height 13'3"
John Deere or Volvo Motor option available

Want More Information About Our Model B Crusher?

At E-Z Crusher, we know that the details matter when comparing your crushing equipment options. Our sales team is here to provide the information and advice you need. Contact us to learn more about the Model B Crusher today.
