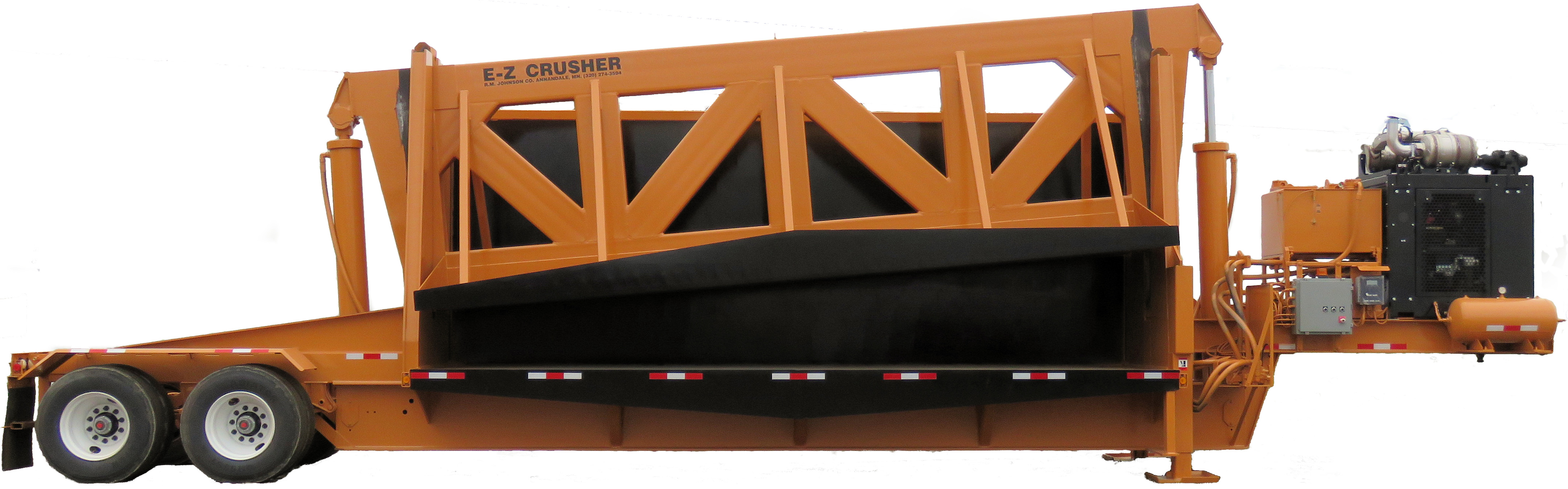

With a 22 foot long deck, the EZ Crusher A22 will easiliy handle your longer vehicles.

Opening Size

22' x 8'1" x 7'7"

Overall Length

45'

Up to Any Task

With its Volvo power, redesigned Top Tube Assembly, 22' wide crushing chamber, and increased capacity hydraulic system, our Model A22 Crusher will speed production and help ease the loading of your longer vehicles.

Unique Bottom-Mount Cylinders

Our system's unique bottom-mounted cylinders pull, rather than push the Crusher deck down, reducing the strain on the hydraulic system without sacrificing crushing power.

Manual & Automatic Capabilities

Our Crushers can be run manually or automatically with our remote automation system.

Built Using Standard Components

Each of our Crushers is built using standard-sized components that are readily sourced, maintained, and repaired. This means servicing the machine is a simple and efficient process.

Additional Specifications

Hydraulics

System Pressure 2500 psi
Port Reliefs Set At 2650 psi
Cylinders 10" bore
Travel 78"
Shaft 4" rod

Opening

Size 22' x 8'1" x 7'7"

Overall

Weight 62,000 lbs
Length 45'3"
Travel & Operating Height 13'3"
John Deere or Volvo Motor option available

Want More Information About Our Model A22 Crusher?

At E-Z Crusher, we know that the details matter when comparing your crushing equipment options. Our sales team is here to provide the information and advice you need. Contact us to learn more about the Model A22 Crusher today.
