With 10-inch cylinders and a hydraulic system capable of delivering 2500 psi, our Model A Crusher is up to the challenge of even the most rigorous and demanding scrap automobile and metal recycling applications.

Opening Size

20" x 8'1" x 7'7"

Overall Length

43'3"

Up to Any Task

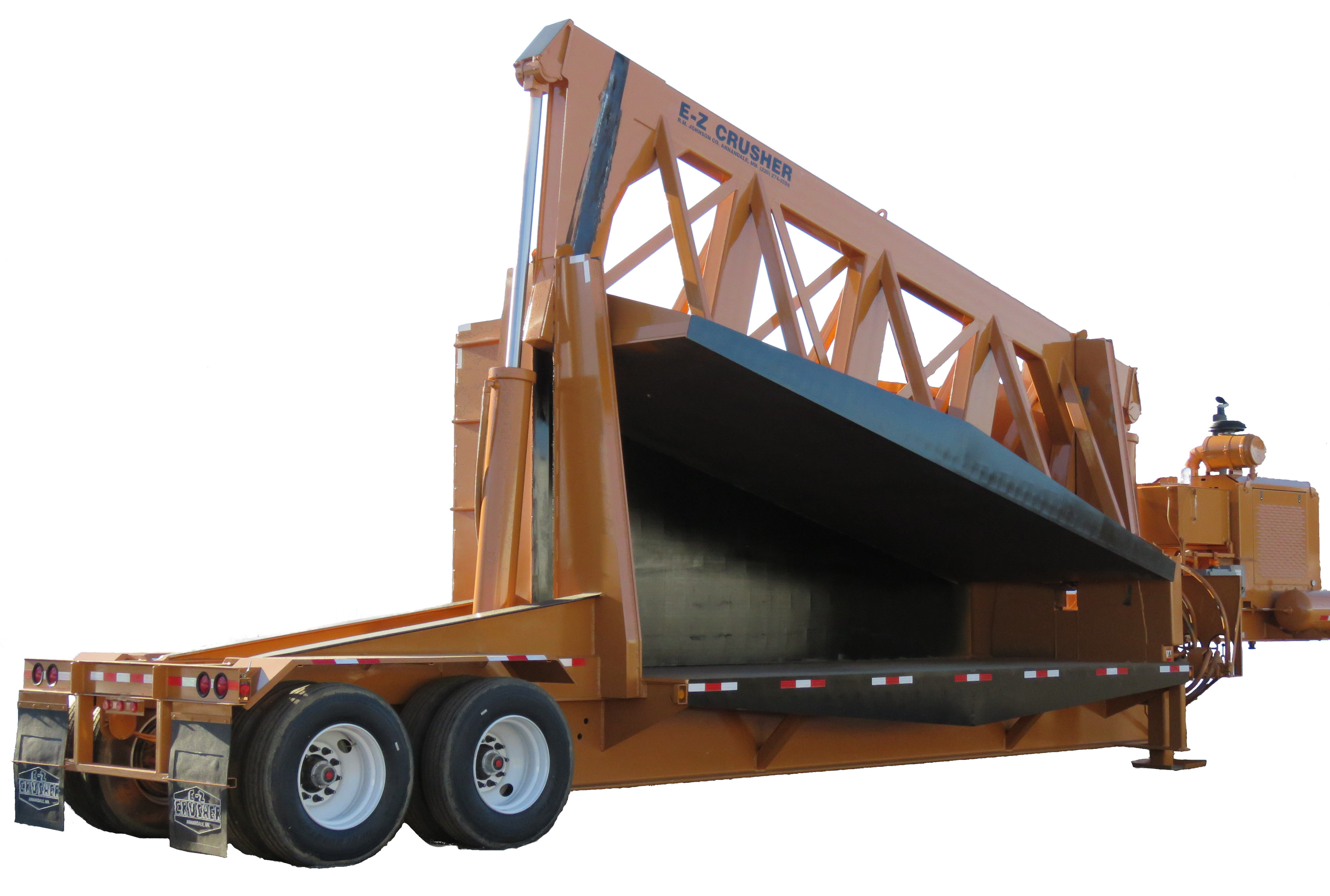

The Model A Crusher is our most popular, weighing in at 61,000 lbs. and measuring 43'3" feet in length. The Model A Crusher has been designed for the most demanding, everyday crushing applications.

Unique Bottom-Mount Cylinders

Our system’s unique bottom-mounted cylinders pull, rather than push, the crusher deck down, reducing the strain on the hydraulic system without sacrificing crushing power.

Manual & Automatic Capabilities

Our crushers can be run manually or automatically with our remote automation system.

Built Using Standard Components

Each of our crushers is built using standard-sized components that are easily sourced, maintained and repaired. This means servicing the machine is a simple and efficient process.

Additional Specifications

Hydraulics

System Pressure 2500 psi
Port Reliefs Set At 2650 psi
Cylinders 10" bore
Travel 78"
Shaft 4" rod

Opening

Size 20" x 8'1" x 7'7"

Overall

Weight 61,000 lbs
Length 43'3"
Travel & Operating Height 13'3"
John Deere or Volvo Motor option available

Reach Out for More Information.

Our sales team is here to help you compare your crushing equipment options. To learn more about the E-Z Crusher Model A, contact us today.

View Our Other Crushers

To explore additional options for your crushing needs, review our Model B Crusher and H.O.S.S. Crusher.
